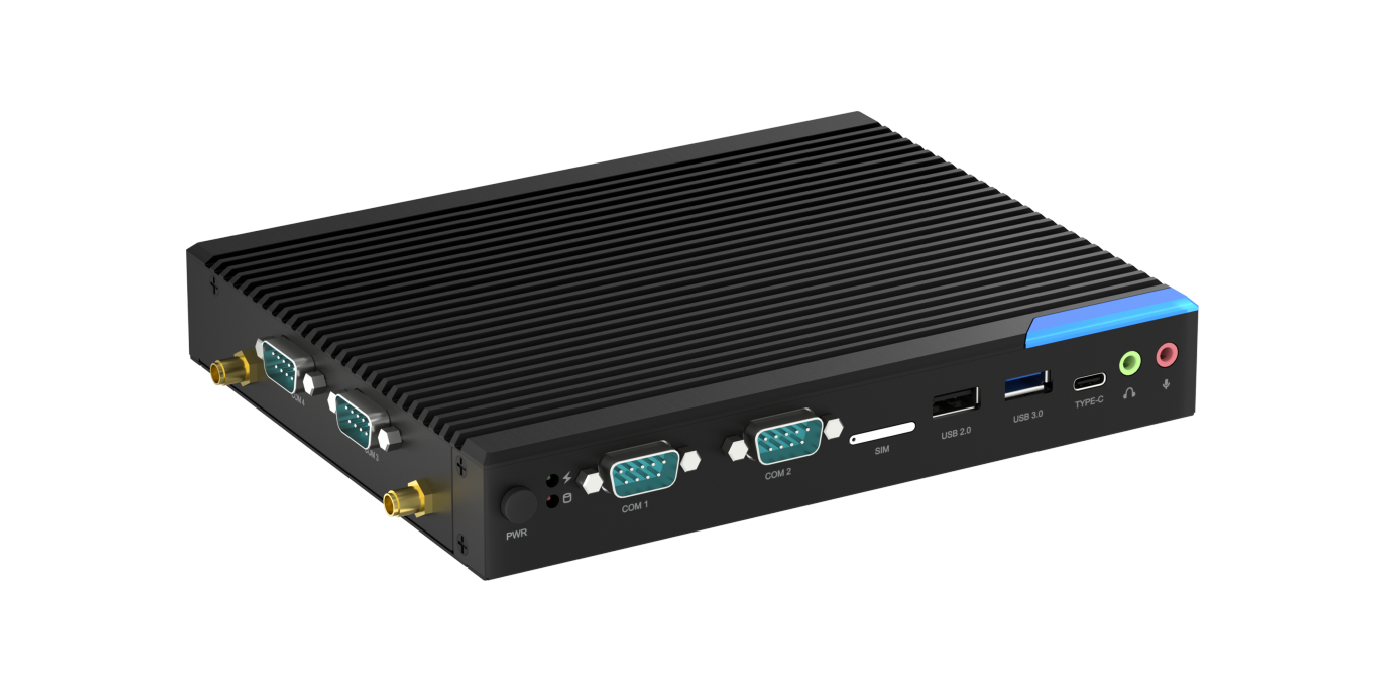

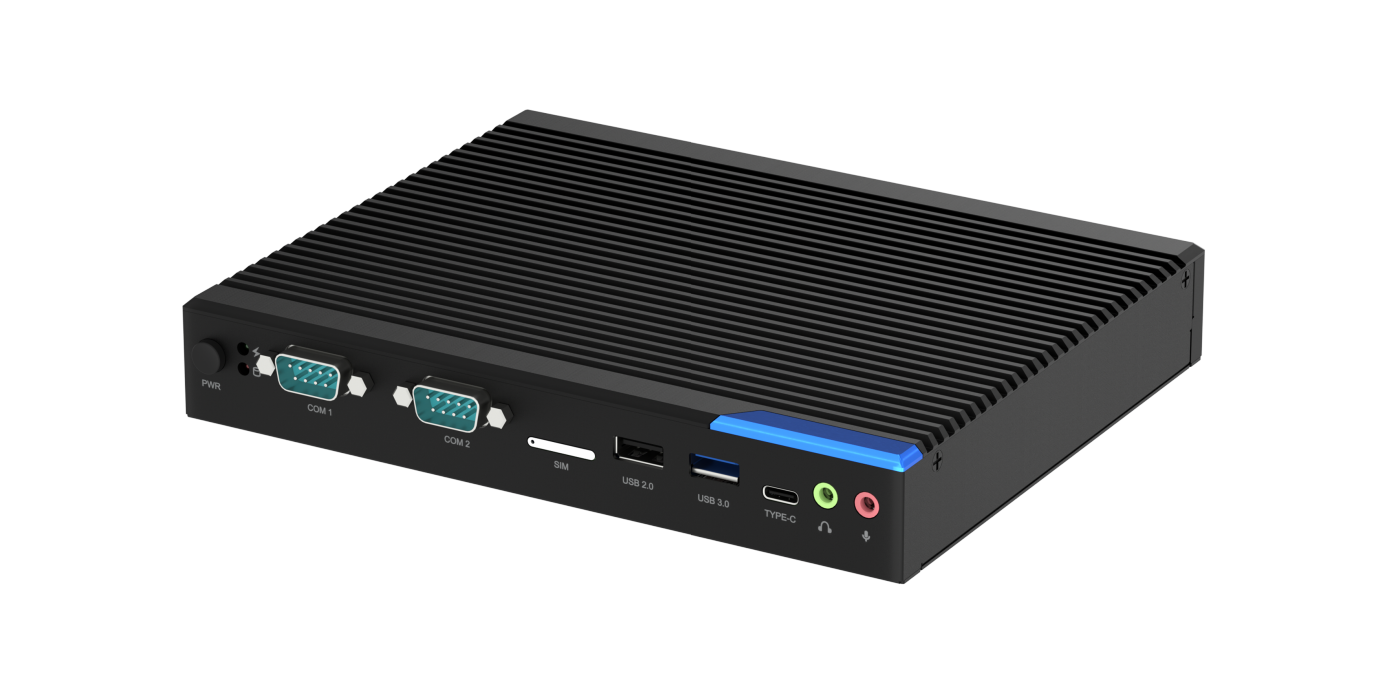

H105

X86 平台商显终端

基于英特尔Alder Lake-N平台设计，JWIPC H105是一款经济高效，多功能的无风扇商显终端，专为行业应用而设计，是理想的数字标牌、自主设备以及信息发布系统的硬件解决方案。

留言咨询业务咨询

规格参数

CPU	CPU	Intel® Processor N95/N305/N100
CPU	TDP	6-15 W
Display	Graphics card	Intel® UHD Graphics
	Multi displays	Support Three displays
	Interface	3 x HDMI-Out 4K@30Hz
Network	LAN IC	2 x LAN IC 8111H
	LAN Interface	10/100/1000Mbps
	LAN Connector	2 x RJ45 Ports
	Wireless Type	M.2 Key E 2230 Module
	Wireless Interface	Mini PCIe WiFi/BT Module, Intel 3165/ Intel AX101
	4G/5G	Optional
I/O interface	Serial Port	2 x RS232 COM1/2 Connector(Optional) 1 x COM3 (RS232) 1 x COM4 (RS232/RS422/RS485)
	USB	3 x USB3.0, 2 x USB2.0 1 x Type-C
	Button	1 x PowerButton, 1 x CMOS Button
	SIM CARD	1 x SIM Card Slot/e-SIM Module (optional)
	AUDIO	1 x Line Out ; 1 x MIC-In
	POWER	1 x 2.5/5.5 DC-IN Connector
System	Memory	Single SoDIMM DDR4 Max. 16 GB
	Storage	1* M.2 Key M 2280 Size For NVMe/SATA SSD
	OS	Window11/Windows10/ Linux
	Watchdog	Support
	Auto Power On	Yes
	RTC	Power On/Off at specific time, a week as a cycle
	Power Input	12v 2.5/5.5 DC-In
	Dimension	199mm(L) x 152mm(W) x 30mm(H)
	Operating Temp.	-5~45℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
